AHPM Series Hydraulic Pullers

Categories: , ,

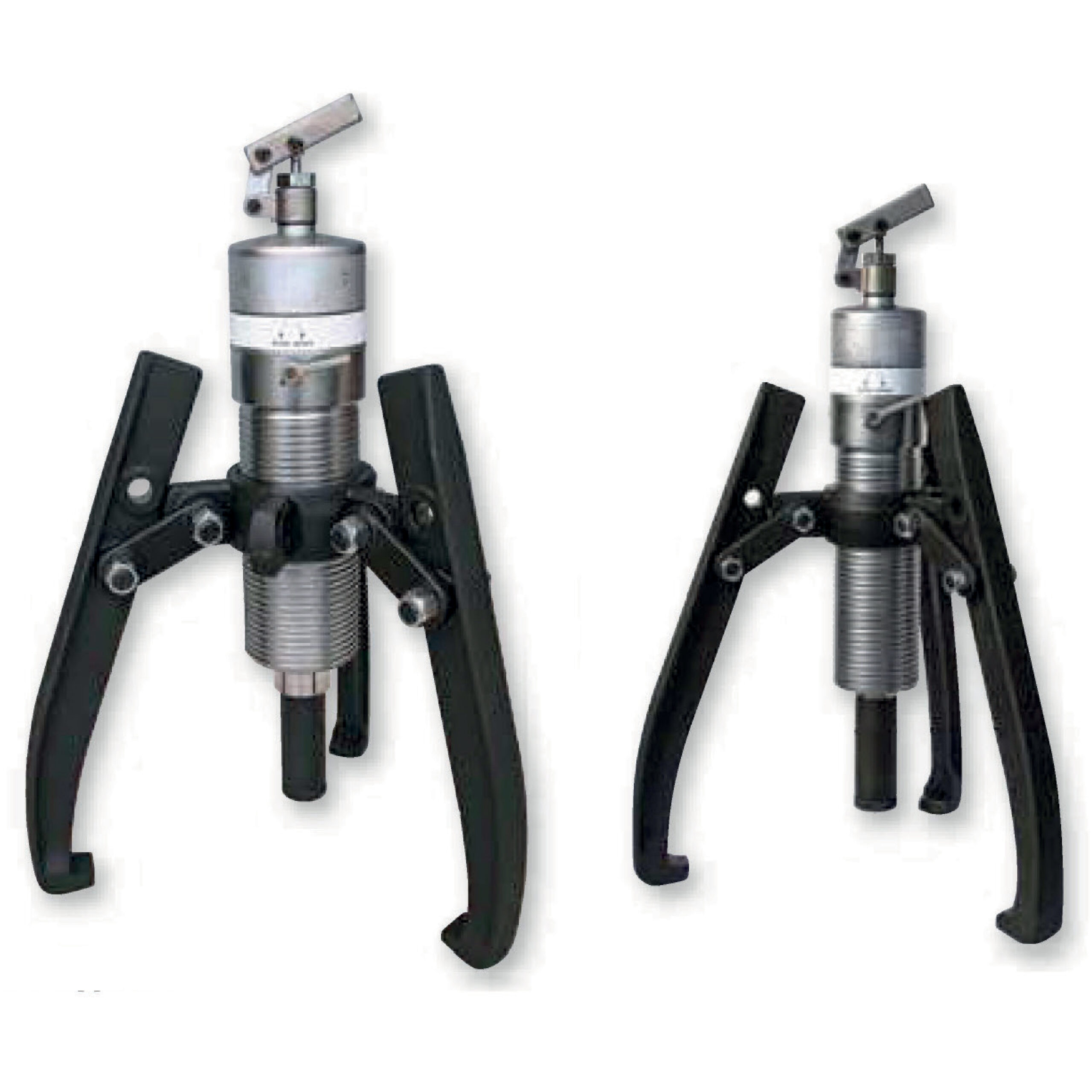

AHPM Series Hydraulic Pullers



PM Series Hydraulic Pullers





Description

Features

  • Combination pullers are able to be used with 2 or 3 jaws.
  • 360° rotary socket.
  • Integral safety valve.
  • Removable spring loaded centring nut.
  • Removable, folding handle.
  • PM2000 / PM3000 supplied with a two speed pump.
  • The extension rods can be used for extra reach when necessary.

Accessories

Model No. Part No. Length of Long Arm (mm) Max Reach Max Spread
AHPM400 C09648 295 222 300
AHPM600 C0949 335 260 363
AHPM800 C0950 395 308 445
AHPM1200 C0951 435 340 420
AHPM2000 C0960 555 428 540
AHPM3000 C0961 555 428 620

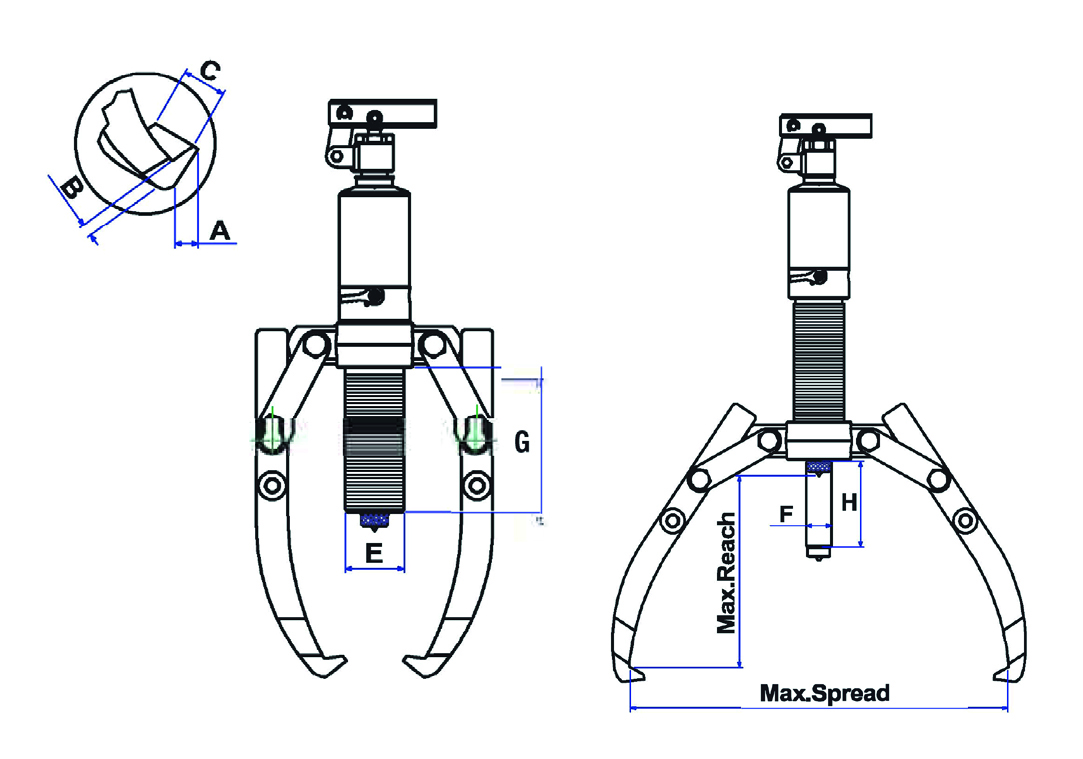

Specifications

Capacity Model No. Reach (Max. mm) Spread (Max. mm) Stroke (mm) Pump Tip (mm) Jaw Tip (mm) Weight
H E F G A B C
4 Ton AHPM400 185 255 60 42 22 84 11 6 22 8.3
6 Ton AHPM600 220 330 70 45 23 94 13 10 22 8.5
8 Ton AHPM800 230 350 85 50 25 122 11 10 25 12.0
12 Ton AHPM1200 270 375 85 60 28 118 14 10 29 17.2
20 Ton AHPM2000 360 520 111 80 40 160 20 27 33 38.2
30 Ton AHPM3000 360 550 111 98 50 155 20 27 38 50.6

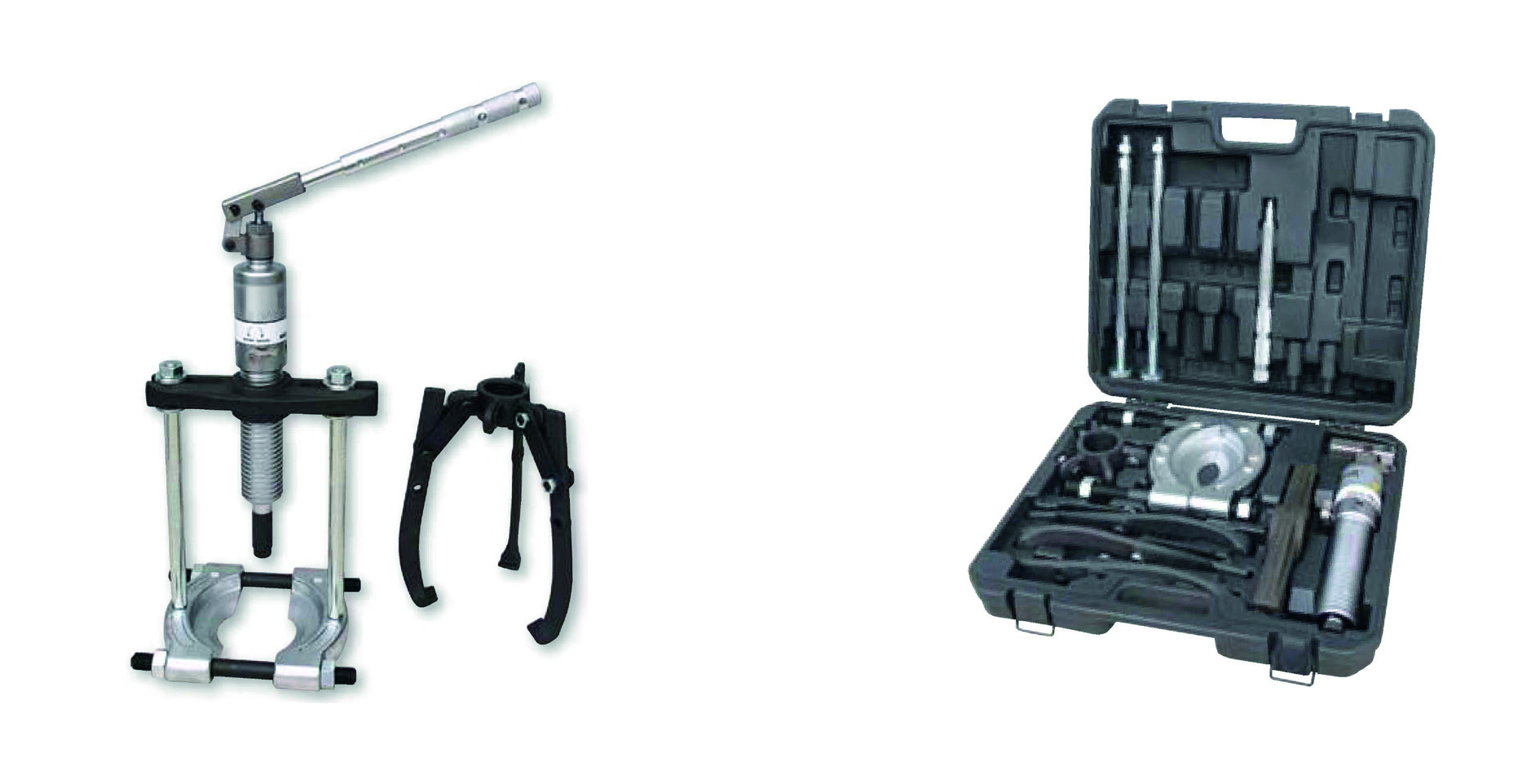

Package Models

Features

  • Removable, folding handle.
  • 360° rotary socket.
  • Self-contained hydraulic pump and puller body with integral safety valve.
  • Removable spring loaded centring nut.
  • Package including puller body, jaw assembly, cross bearing, extension bar and blow moulded case.

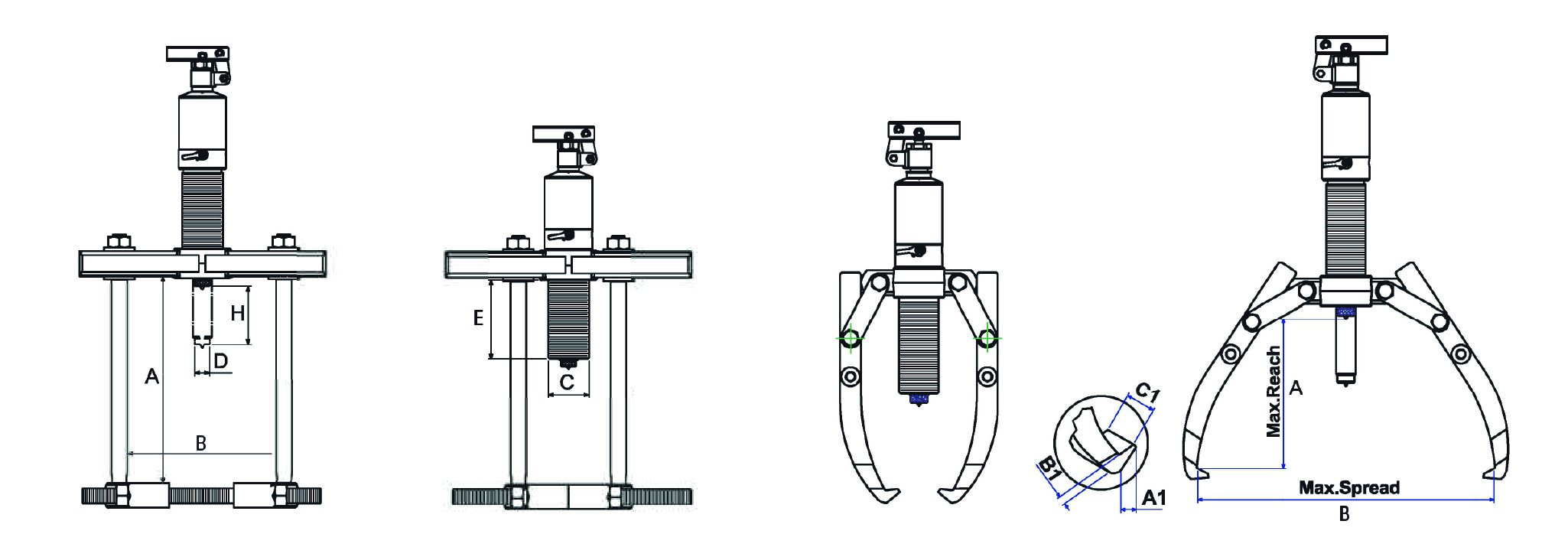

Specifications

Capacity Model No. Reach (Max. mm) Spread (Max. mm) Stroke (mm) Pump Tip (mm) Jaw Tip (mm) Weight (kg)
A B H C D E A1 B1 C1
4 Ton AHPM420 185/224 255/145 60 42 22 84 11 6 22 12.4
6 Ton AHPM620 220/255 330/220 70 45 23 94 13 10 22 17.0
8 Ton AHPM820 230/255 350/230 85 50 25 122 11 10 25 20.0
12 Ton AHPM220 270/298 375/310 85 60 28 115 14 10 29 17.2/20.6 (Puller / acc. set)
