Description
Air Consumption Diagram
Oil Flow / Pressure Diagram
Available in Three Models
APSF28: Two speed, pedal control, single acting.
APDF28: Two speed, manual valve, double acting.
APSR28: Two speed, remote control, single acting.

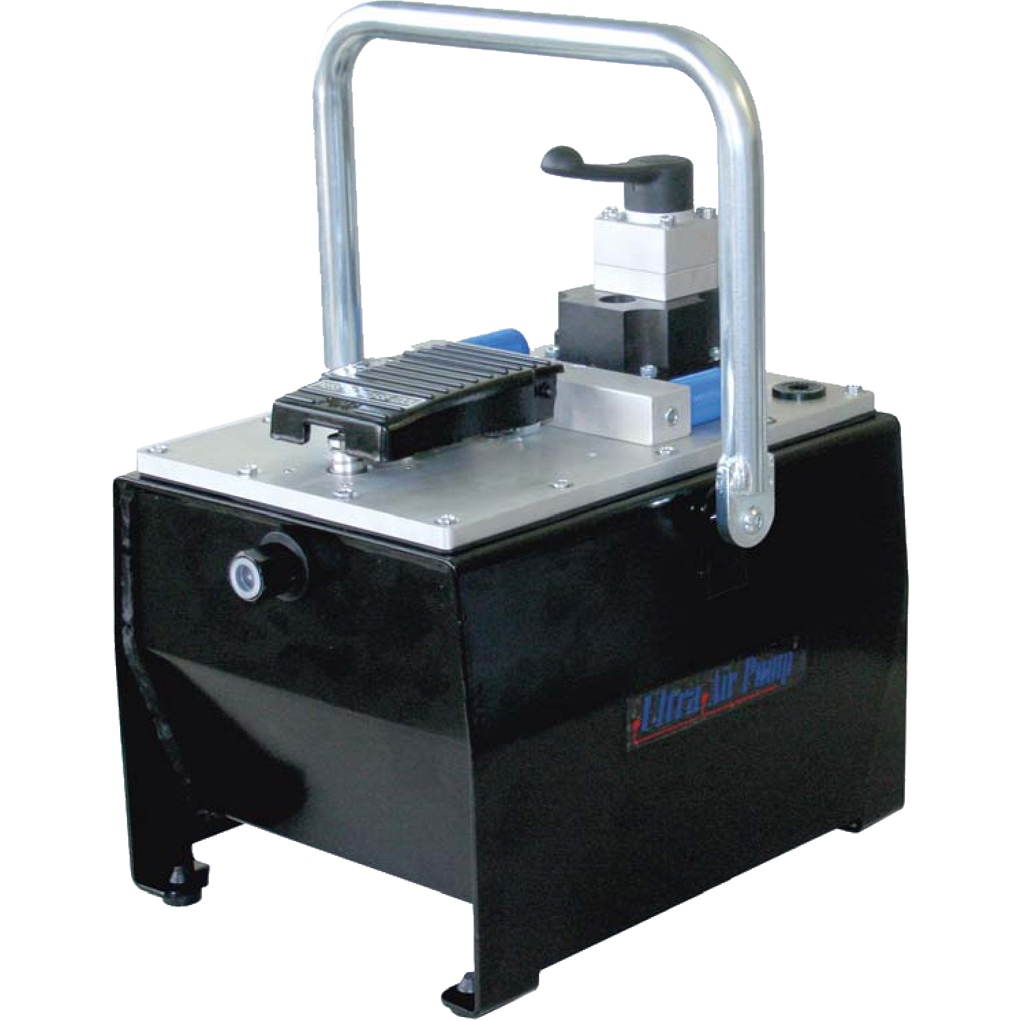

APP – Double Pump – Two Speed Air Pump With Manual Valve
- Available in Single Acting, Double Acting or with remote control.
- Maximum operating pressure up to 700 bar.
- Approximate flow rate at rated pressure.
1st stage: 8.5 l/min.
2nd stage: 0.26 l/min. - 8 L stainless tank.
- Pneumatic supply 4 – 10 bar.
- No lubricated air.
- Noise level 85 dbA.
- Size mm 356x297x365.
- Weight 23.7 Kg.
- Built for heavy duty.
- Internal pressure relief valve.
- Air connection: G 3/8”.
- Oil connection: 3/8”-18 NPTF.
- Air consumption: 780 l/min.
