Description
Working Pressure (bar): 20 – 700.
Cylinder Compatibility: Double Acting.
Oil Tank Capacity (L): 1.5.
Usable Oil (L): 1.5.

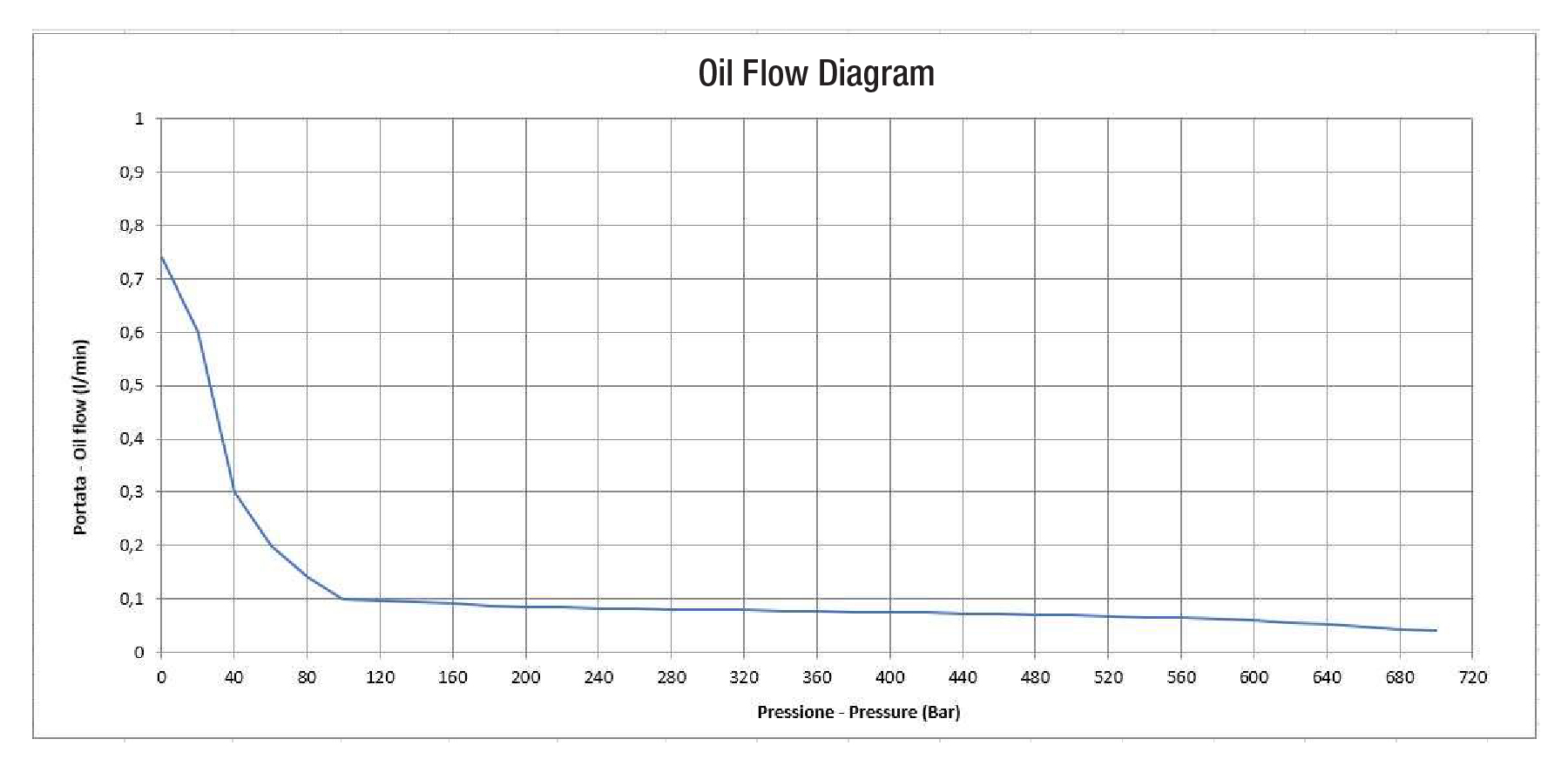

Oil Flow Without Load (l/min): 0.7
Oil Flow With Load (l/min): 0.06 (700 bar).
Oil Port: 3/8″ NPT.
Valve Operation: Advance/Hold/Retract.
Valve Function: Manual.
Power Source: MAKITA Lithium battery 18V-6.0Ah.
Weight (kg): 6.
| Type | Max Output (Bar) | Cylinder | Oil Tank (L) | Usable (L) | Oil flow without load (l/min) | Oil flow with load (l/min) | Power | Weight (kg) |
| BPSB21 | 700 | S/A | 1.5 | 1.5 | 0.7 (20 Bar) | 0.06 (700 Bar) | 18V | 6 |
| BPDB21 | 700 | D/A | 1.5 | 1.5 | 0.7 (20 Bar) | 0.06 (700 Bar) | 18V | 6 |
Available as a kit including the pump, 2 x 18V batteries and a charger. For Single Acting Cylinders: BPSB21-BC
For Double Acting Cylinders BPDB21-BC
