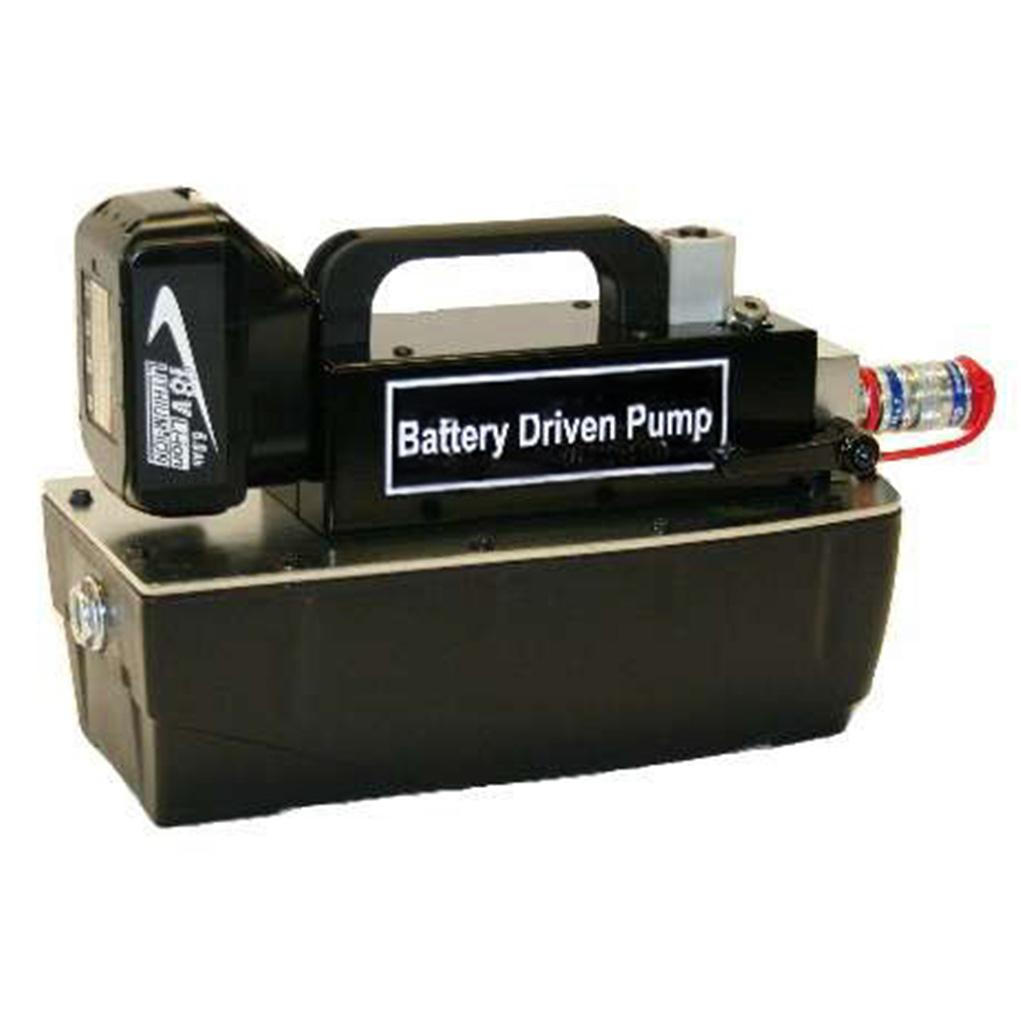

BPSB21 - Battery Powered Portable Pump
Abdex Hydraulics > Products > BPSB21 – Battery Powered Portable Pump

BPSB21 – Battery Powered Portable Pump

Categories: ,
Battery operated hydraulic pump, single acting, push button operation, , 700bar maximum pressure, 0.7 / 0.06 l / min, 1.5L capacity

Features

  • Cordless operation.
  • Powered by MAKITA 18V-6.0Ah lithium-ion battery.
  • Extremely compact design with ergonomic handle.
  • Push button operation (advance and hold).
  • Activation button safety cover.
  • For use with single acting cylinders.
  • Diaphragm oil tank for operation in any position.
  • Easy maintenance.
  • Operation in any position.
  • Lever release valve for oil return to the tank.
  • Extremely lightweight.
  • Low Noise (silent).
  • Oil capacity 1.5L.
  • Internal safety valve set at 700bar to prevent overpressure.

Datasheet Download

BPSB21 – Battery Powered Portable Pump



Description

Working Pressure (bar): 20 – 700.
Cylinder Compatibility: Single Acting.
Oil Tank Capacity (L): 1.5.
Usable Oil (L): 1.5.

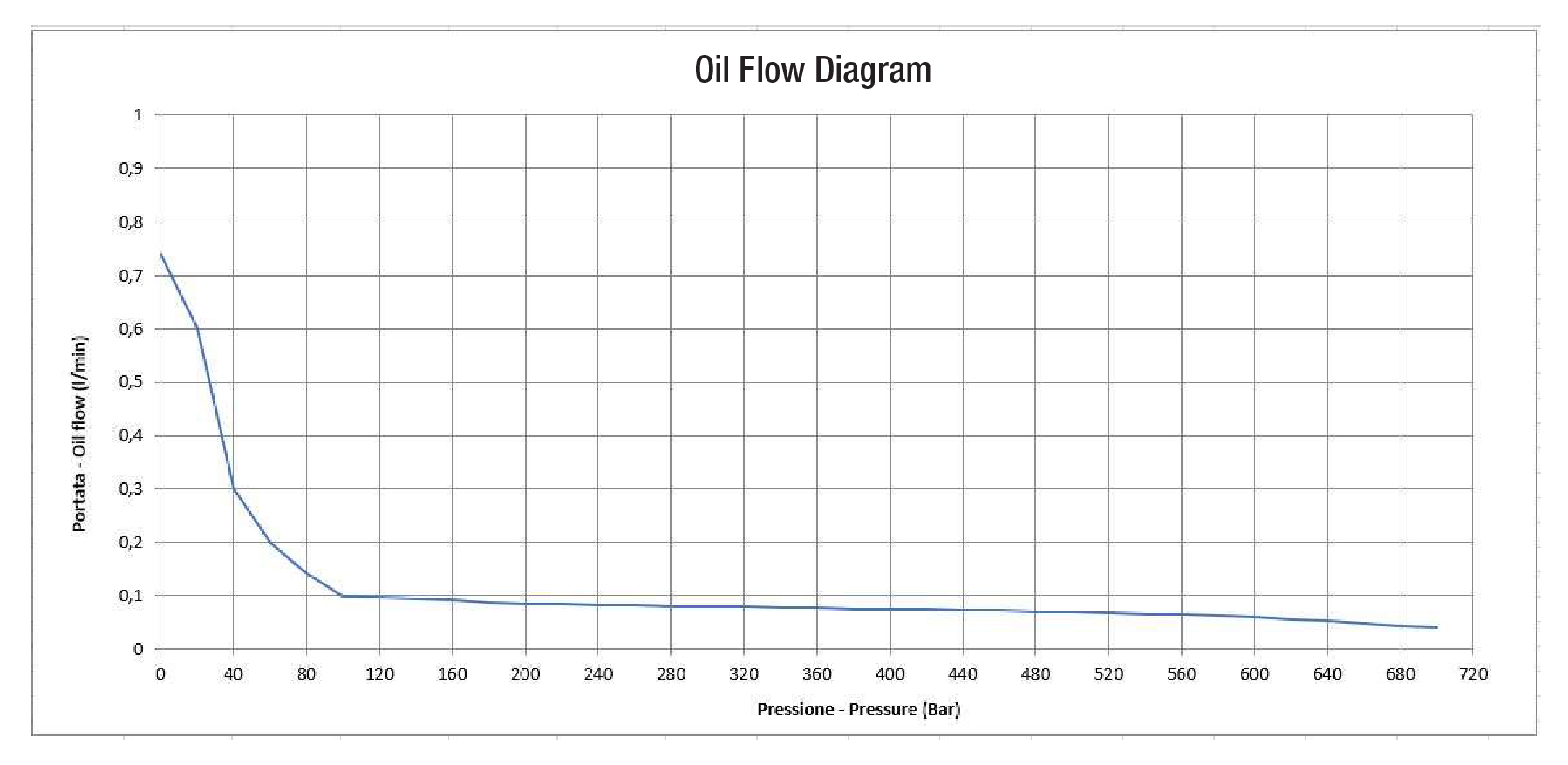

Oil Flow Without Load (l/min): 0.7
Oil Flow With Load (l/min): 0.06 (700 bar).
Oil Port: 3/8″ NPT.
Valve Operation: Advance/Hold/Release.
Valve Function: Manual.
Power Source: MAKITA Lithium battery 18V-6.0Ah.
Noise dBA: Silent.
Weight (kg): 6.



Type Max Output (Bar) Cylinder Oil Tank (L) Usable (L) Oil flow without load (l/min) Oil flow with load (l/min) Power Weight (kg)
BPSB21 700 S/A 1.5 1.5 0.7 (20 Bar) 0.06 (700 Bar) 18V 6
BPDB21 700 D/A 1.5 1.5 0.7 (20 Bar) 0.06 (700 Bar) 18V 6



Available as a kit including the pump, 2 x 18V batteries and a charger. For Single Acting Cylinders: BPSB21-BC
For Double Acting Cylinders BPDB21-BC
