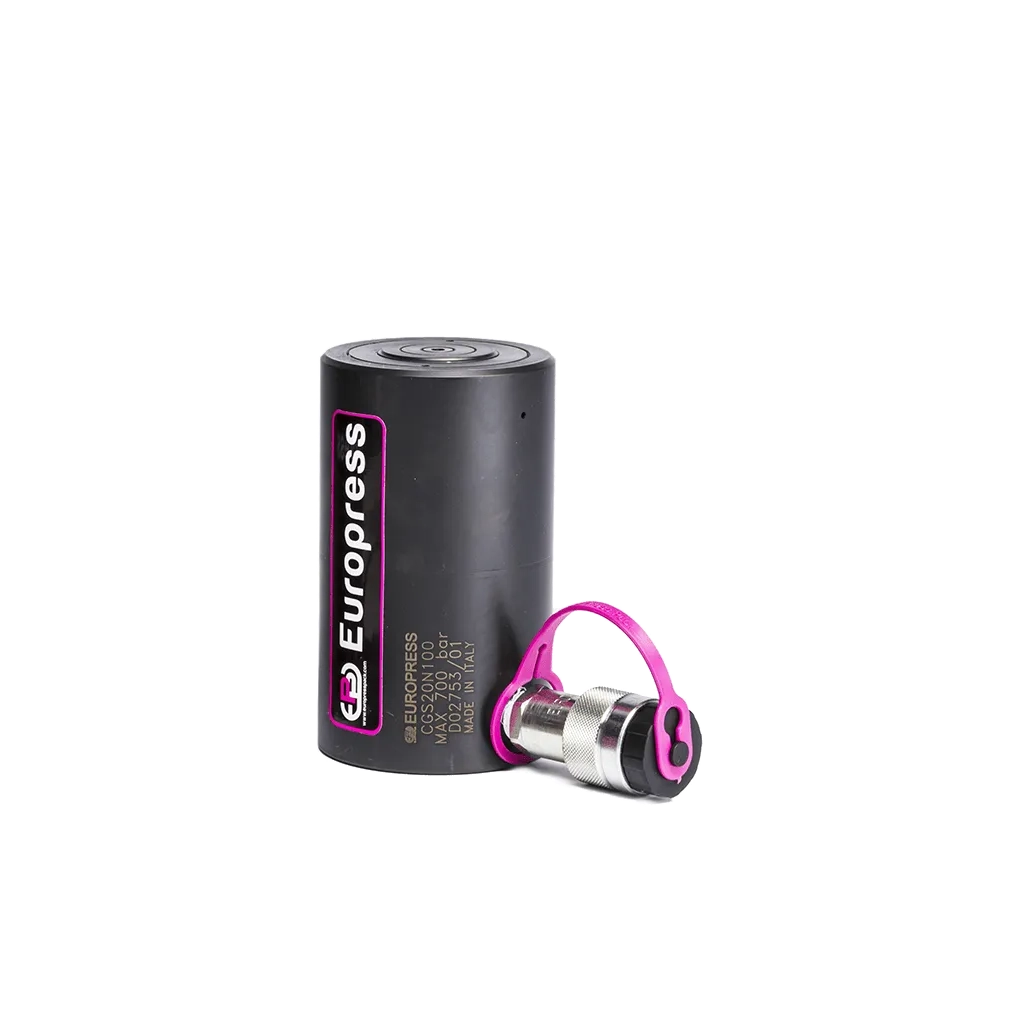

CYLINDERS, LOAD RETURN STANDARD – FOR HIGH TONNAGE

Force: 5-500 t
Stroke: 15-300 mm
Max Working Pressure: 700 Bar

Features

CGS cylinders also have concentric grooves machined into the end of the rod to improve load grip, models above 30 tonne have lifting eyelets to facilitate their transport. From 50 ton upwards, the cylinders  are  plunging  type (P version) and have a system which prevents any possible over-stroke. The rod has a coloured zone which becomes visible 10 mm before the end of the piston stroke.
All models can operate with off-centred load up to 8% of their nominal capacity.

Datasheet Download

CGSN

Description

Operational Areas

These hydraulic cylinders are extremely solid and are recommended for the lifting, lowering, and sustaining of a heavy load. They are carried out specifically strong in order to be useful in applications that require very heavy loads to be lifted. The anti-corrosion treatment applied to these cylinders makes them suitable for use in harsh and adverse environments.

Options

  • T version: Cylinder with integrated tilt saddle.
  • F version: Cylinder with base mounting holes for fixing purposes.
  • N version: (Optional starting from 50 t) cylinders with end of stroke ring nut.

This version is in compliance with ANSI B30.1.

Accessories

  • ZTT tilt saddle reduces the effects of any possible off-centred load.

Whenever P version cylinders are being used, the operator must always be in a position to observe when the coloured end of the stroke section of the rod appears.

Selection Chart

PUSHING FORCE STROKE EFFECTIVE AREA OIL VOLUME MODEL CLOSED HEIGHT CLOSED HEIGHT WITH INTEGRATED TILT SADDLE Ø EXTERNAL Ø PISTON Ø ROD VERSION P Ø ROD VERSION N COUPLER HEIGHT ØINTEGRATED TILT SADDLE ROD PROJECTION ROD PROJECTION WITH INTEGRATED TILT SADDLE Ø PCD MUNTING HOLES MOUNTING HOLES DEPTH WEIGHT *Nominal value, for precise capacity see kN
t* KN mm cm² cm³ A A1 D E F F1 H J K K1 U V / Z kg

5

49.5

 15 7.1 11 CGS5N15 45 – 60/45  30  –  24  19  –  1  –  30

2xM5
10

 1
50 35 CGS5N50 80 1.6
80 56 CGS5N80 120 2.4

10

111

 25 15.9 40 CGS10N25 72 75  75  45  –  35  19  34  1  4  25

2xM8
8

 2.8
50 80 CGS10N50 97 100 3.6

20

198

 25 28.3 71 CGS20N25 75 80  88  60  –  45  19  43  1  6  60

2xM10
10

 3.7
50 141 CGS20N50 100 105 4.7
100 283 CGS20N100 150 155 6.6

30

309

 25 44.1 110 CGS30N25 86 90  102  75  –  55  19  53  1  5  65

2xM10
13

 5.5
50 221 CGS30N50 111 115 6.7
100 442 CGS30N100 161 165 9.1

50

496

 50 70.9 354 CGS50P50 122 127  127  95  95  80  22  68  1  6  95

2xM12
15

 12
100 709 CGS50P100 172 177 17
150 1063 CGS50P150 222 227 22

100

929

 50 132.7 664 CGS100P50 141 148  175  130  130  100  22  88  2  9  130

2xM12
17

 27
100 1327 CGS100P100 191 198 36
150 1991 CGS100P150 241 248 46

150

1407

 25 201 503 CGS150P25 137 146 213  160  160 120  30  118  3 12 130

4xM12
17

 38
50 1005 CGS150P50 162 171 45
100 2011 CGS150P100 212 221 59
150 3016 CGS150P150 262 271 73
200 4021 CGS150P200 312 321 87
250 5026 CGS150P250 362 371 101

Selection Chart

PUSHING FORCE STROKE EFFECTIVE AREA OIL VOLUME MODEL CLOSED HEIGHT CLOSED HEIGHT WITH INTEGRATED TILT SADDLE Ø EXTERNAL Ø PISTON Ø ROD VERSION P Ø ROD VERSION N COUPLER HEIGHT ØINTEGRATED TILT SADDLE ROD PROJECTION ROD PROJECTION WIDTH INTEGRATED TILT SADDLE Ø PCD MOUNTING HOLES MOUNTING HOLES DEPTH WEIGHT * Nominal value, see kN for the exact force
t* kN  mm  cm²  cm3 A A1 D E F F1 H J K K1 U V / Z kg

200
1984

 25 283.4 709 CGS200P25 151 160 252 190 190 150 32 148 3 12 140

4xM16
20

 59
50 1418 CGS200P50 176 185 69
100 2835 CGS200P100 226 235 88
150 4253 CGS200P150 276 285 108
200 5670 CGS200P200 326 335 127
250 7088 CGS200P250 376 385 147
300 8506 CGS200P300 426 435 167

250
2424

 25 346.3 866 CGS250P25 167 176 280 210 210 170 34 158 3 12 150

4xM16
20

 81
50 1732 CGS250P50 192 201 93
100 3464 CGS250P100 242 251 117
150 5195 CGS250P150 292 301 141
200 6927 CGS200P200 342 351 165
250 8659 CGS250P250 392 401 189
300 10391 CGS250P300 442 451 213

300
2908

 25 415.4 1039 CGS300P25 173 182 305 230 230 190 38 158 3 12 170

4xM16
20

 99
50 2077 CGS300P50 198 207 113
100 4155 CGS300P100 248 257 142
150 6232 CGS300P150 298 307 171
200 8310 CGS300P200 348 357 199
250 10387 CGS300P250 398 407 228
300 12464 CGS300P300 448 457 257

Selection Chart

PUSHING FORCE STROKE EFFECTIVE AREA OIL VOLUME MODEL CLOSED HEIGHT CLOSED HEIGHT WITH INTEGRATED TILT SADDLE Ø EXTERNAL Ø PISTON Ø ROD VERSION P Ø ROD VERSION N COUPLER HEIGHT Ø INTEGRATED TILT SADDLE ROD PROJECTION ROD PROJECTION WITH INTEGRATED TILT SADDLE Ø PCD MOUNTING HOLES MOUNTING HOLES DEPTH WEIGHT * Nominal value, see kN for the exact force
t* kN mm cm² cm3 A (mm) A1 (mm) D (mm) E (mm) F (mm) F1 (mm) H (mm) J (mm) K (mm) K1 (mm) U (mm) V / Z (mm) KG
350           3436 25 490.9 1227 CGS350P25 180 192 332 250 250 210 39 196 3 15 200

4xM16
20

 122
50 2454 CGS350P50 205 217 139
100 4909 CGS350P100 255 267 173
150 7363 CGS350P150 305 317 207
200 9817 CGS300P200 355 367 241
250 12272 CGS350P250 405 417 275
300 14726 CGS350P300 455 467 309
400           4008 25 572.6 1431 CGS400P25 187 199 356 270 270 230 42 196 3 15 230

4xM16
20

 146
50 2863 CGS400P50 212 224 165
100 5726 CGS400P100 262 274 204
150 8588 CGS400P150 312 324 244
200 11451 CGS400P200 362 374 283
250 14314 CGS400P250 412 424 322
300 17177 CGS400P300 462 474 361
500         4948 25 706.9 1767 CGS500P25 195 207 396 300 300 250 50 196 3 15 250

4xM16
20

 188
50 3534 CGS500P50 220 232 212
100 7069 CGS500P100 270 282 261
150 10603 CGS500P150 320 332 309
200 14137 CGS500P200 370 382 357
250 17651 CGS500P250 420 432 406
300 21206 CGS500P300 470 482 454
