Stability Blocks

Category:
Weaver STABILITY BLOCKS

Stack different pads in order to meet the requested height.

SAFETY ADVICE

When you are cribbing, do not mix different blocks. To obtain a safe structure, the blocks need to be identical (same dimension, compression and friction). Please distribute the weight onto points of contact (*) to obtain a maximum load capacity. The height of the stability tower can not be more than 3 times the width of the base! We strongly recommend to always use the jacks in combination with the stabilization blocks for a double protection.

Description

Code Max Capacity Size Weight
M-STP805 25 t / 28 ton 500 x 250 x 80 mm 19.6 x 9.8 x 3.1 in 10 kg 22 lb
M-SP8010 25 t / 28 ton 1000 x 250 x 80 mm 39.3 x 9.7 x 3.1 in 4.5 kg 9.9 lb

Some examples of possible structures

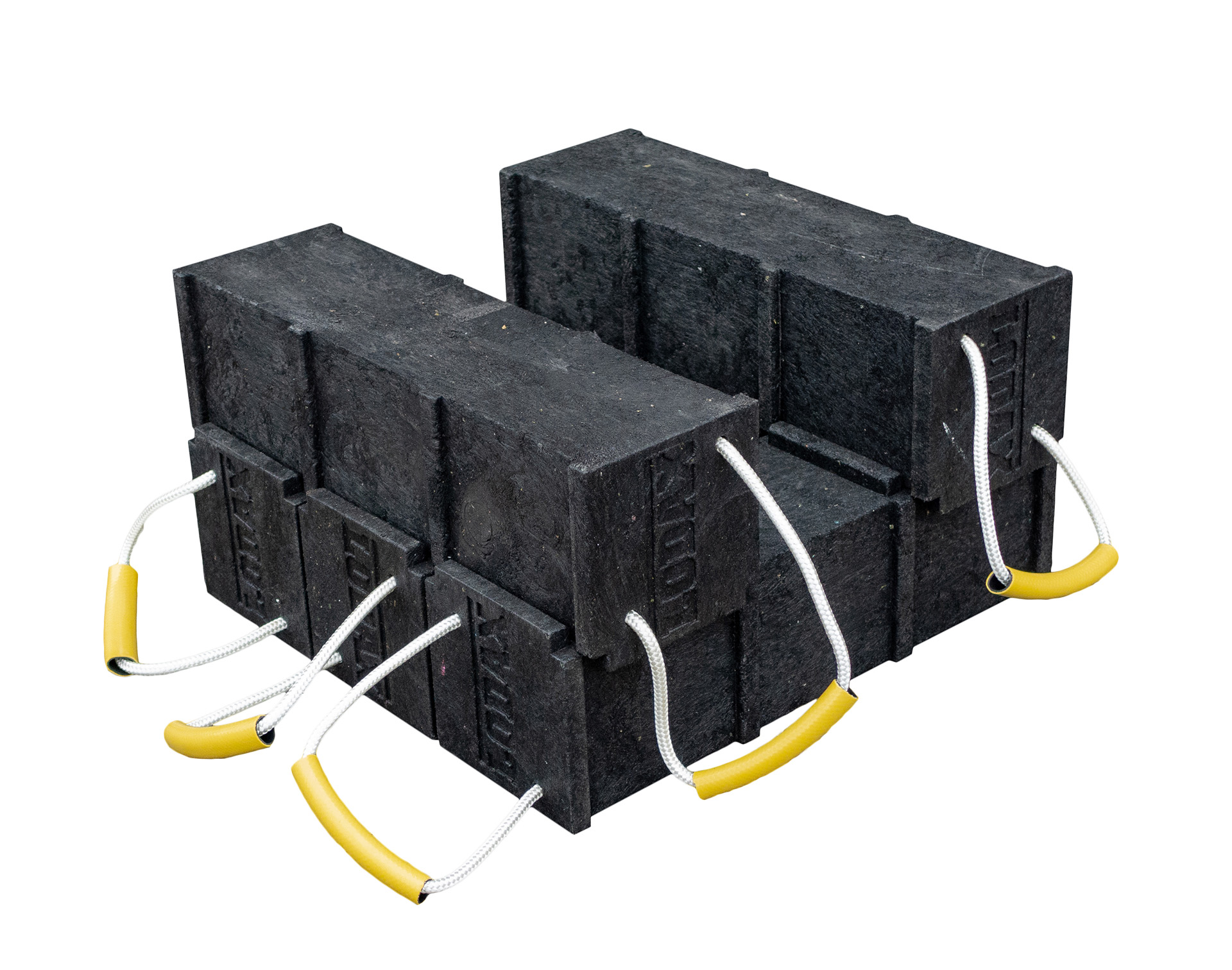

3+2 Max Load 20t

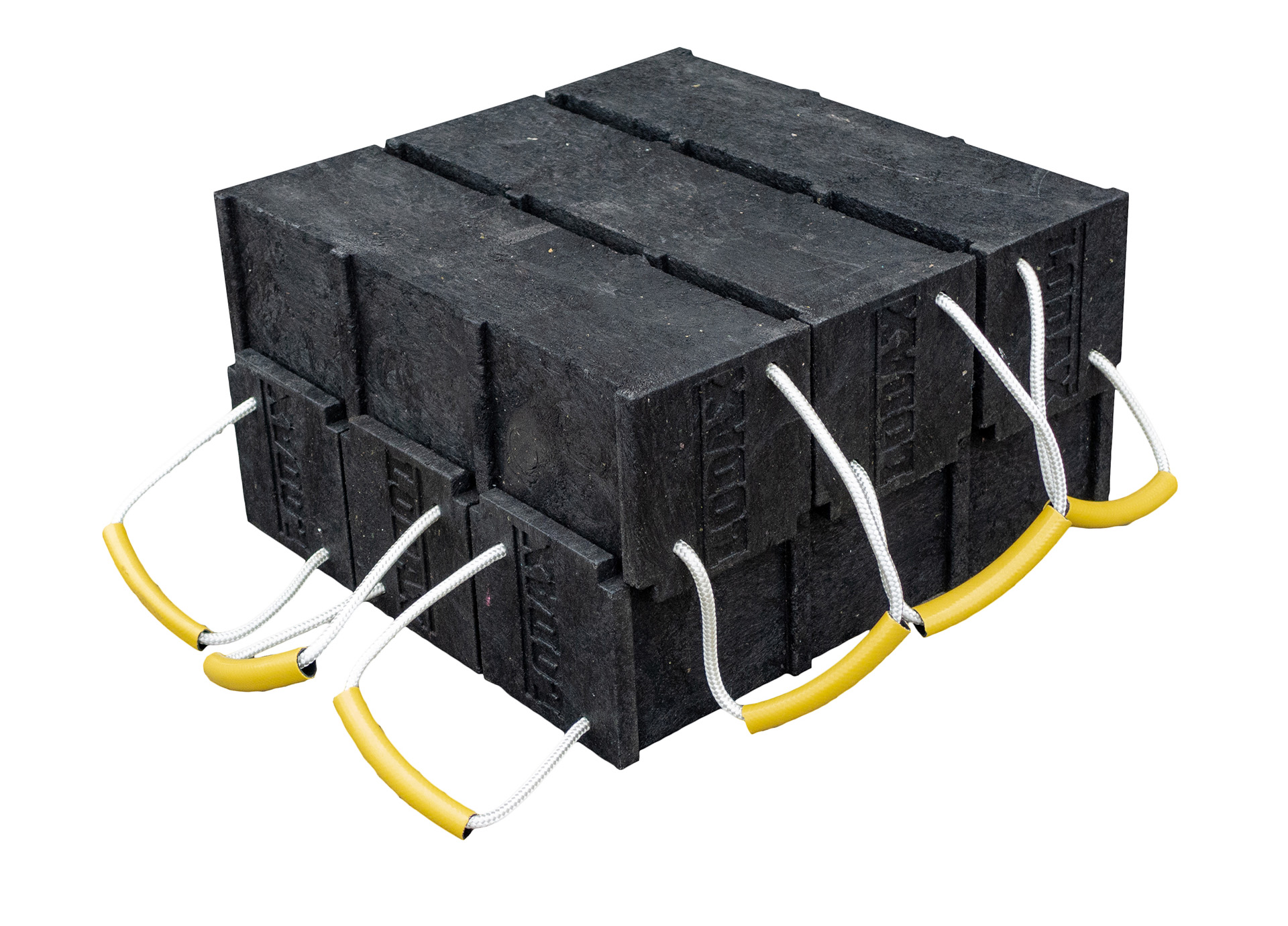

3+3 Max Load: 45t

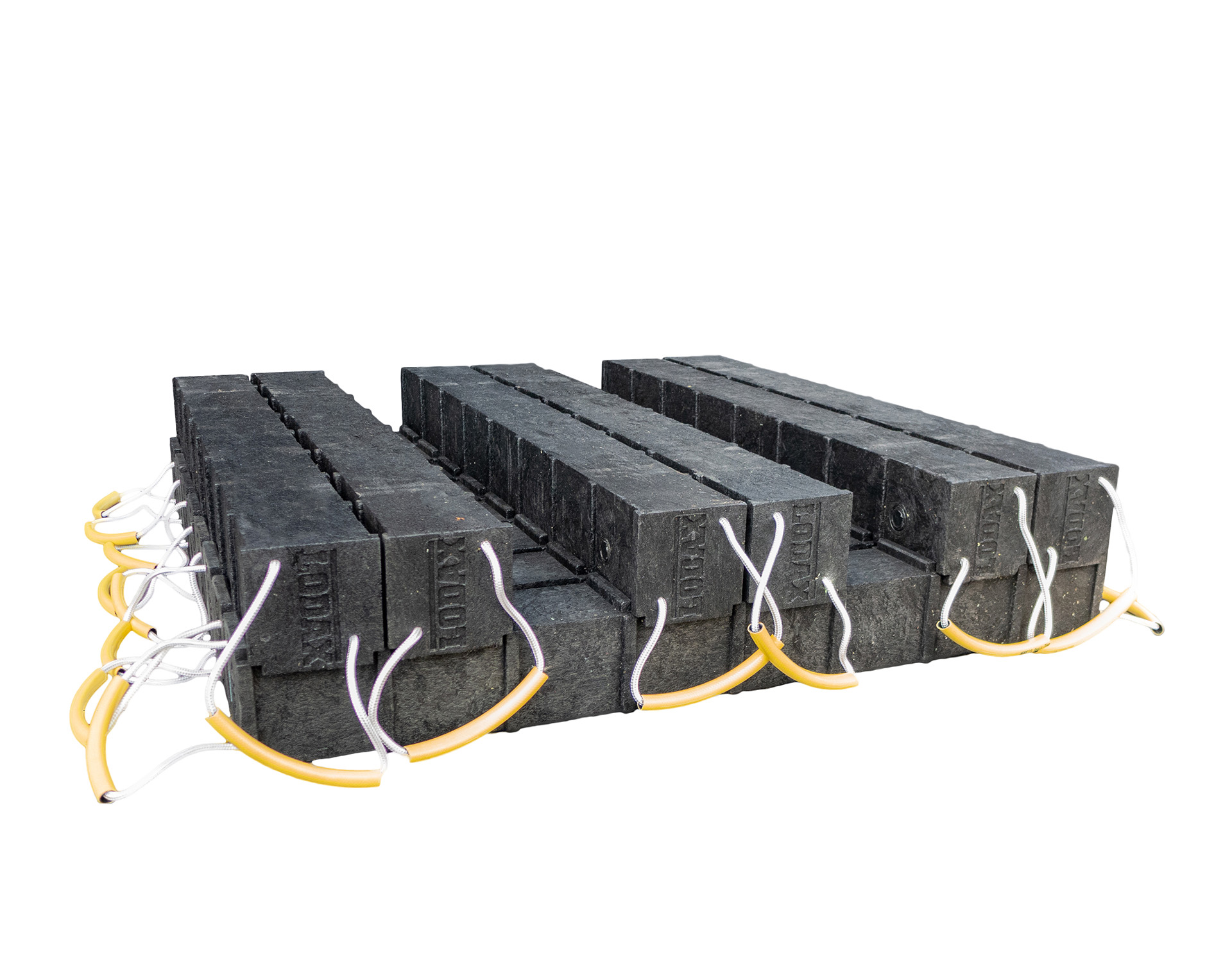

8+6 Max Load: 180t

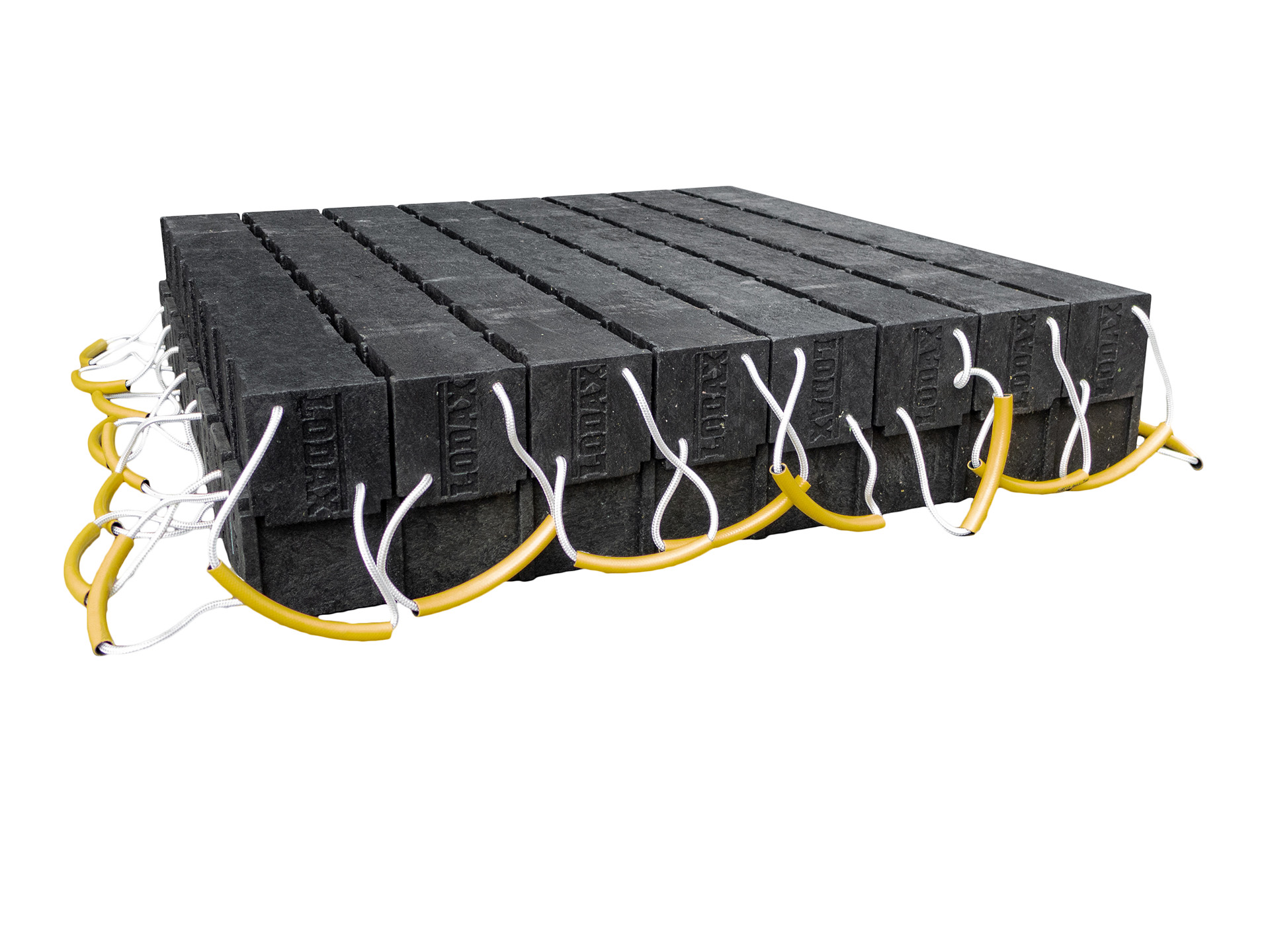

8+8 Max Load: 320t

Suggestions

  • • Always set up a full layer at the base.
  • • Use our top/bottom pads in order to have a better weight distribution.
