Description
Working Pressure (bar): 700 (1st stage: 85, 2nd stage: 700).
Oil Tank Capacity (L): 10.
Usable Oil (L): 7.
Oil Flow Without Load (l/min): 6.0 (1st stage, 85 bar).
Oil Flow With Load (l/min): 0.6 (700 bar).
Oil Port: 3/8″ – 18 NPT.
Power Source: 82V 8Ah Lithium-ion battery (not included).
Motor: 82V, 1.5 kW, 2200 rpm.
Weight (kg): 43 (MBE11), 46 (MBE11C).

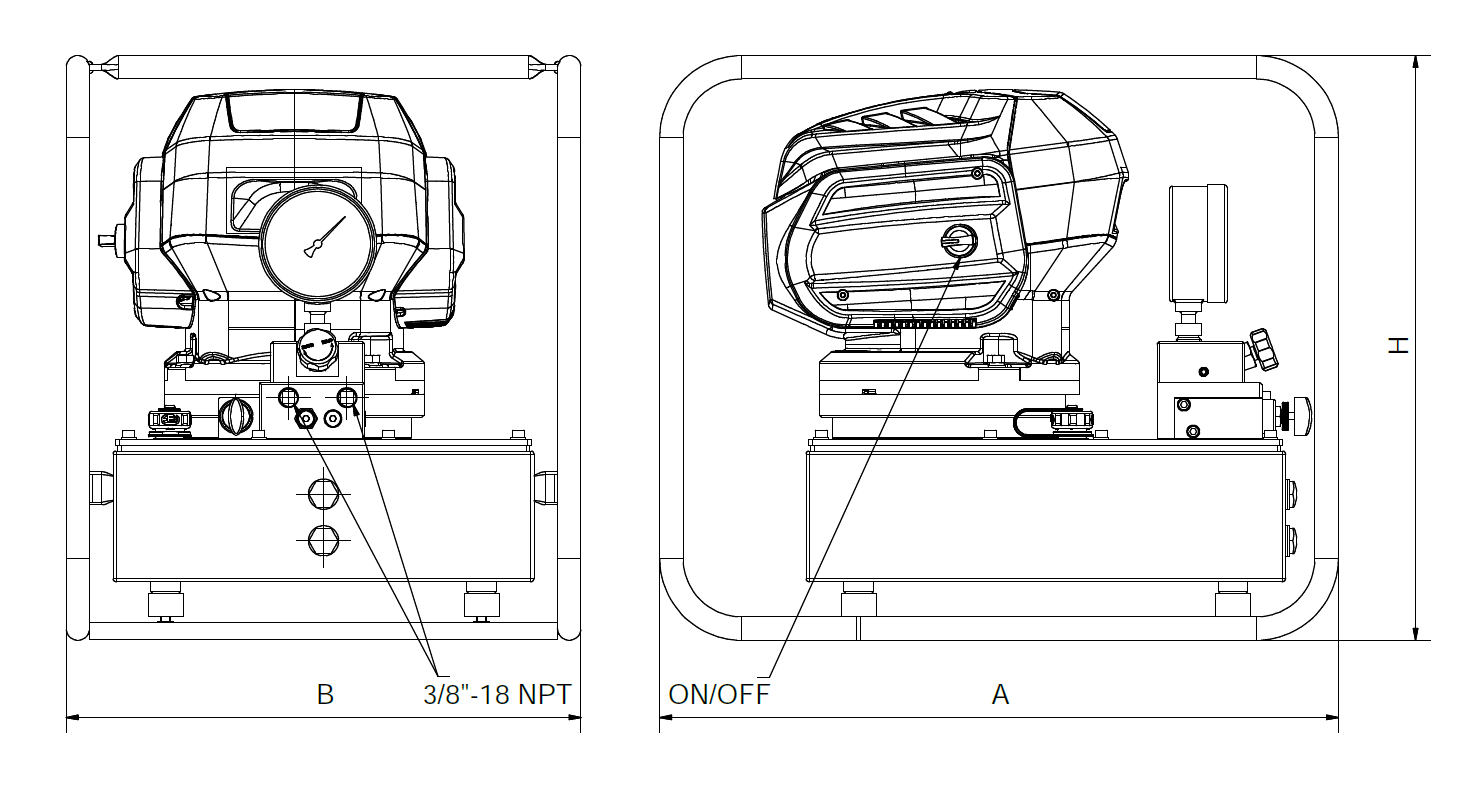

| Type | Max Output (Bar) | Oil Tank (L) | Usable (L) | Oil flow without load (l/min) | Oil flow with load (l/min) | Power | Dimensions mm | Weight (kg) | ||
| MBE11 | 700 | 10 | 7.0 | 6.0 (85 Bar) | 0.6 (700 Bar) | 82V | A - 480 | B - 390 | H - 430 | 43 |
| MBE11C | 700 | 10 | 7.0 | 6.0 (85 Bar) | 0.6 (700 Bar) | 82V | A - 620 | B - 450 | H - 500 | 46 |
Weight includes oil, excludes battery.
